Designed for PET hot labs with limited space to help maximize the work area
and the protection. The cabinet includes the RHLB25PET L Bench, builtin
Dose Calibrator shield and Waste bin.
Dimensions:
▪ Table Top: 36” long, 24” wide, 36” from ground
▪ LBench RHLB25PET Lead
shielding 25mm Base, 40mm Front with
100mm lead glass window
▪ Support arm to place Dose Calibrator near L Bench
▪ Dose Calibrator and Dispensing boxes are not part of supply
▪ Approx weight 650 Kg; including table, two well shields and L Bench
▪ Lead Lined Well shield; 1” thick, 12” height, 9” dia; one below the
table and one inside the L Bench Lockable Cabinet
▪ Custom designs possible
DConveniently loaded from the front, this Storage Safe is ideal for storing large quantities of
high activity radioisotopes. Shielded with a thickness of 2" of lead. The leadlined door is
hung with heavy duty nonsagging hinges and is keylocked to prevent unauthorized access.
Transporting this halfton
safe is made easier with the builtin
lifting handles on top, for
use with a hoist or other means.
▪ Dimensions: 17" w x 17" depth x 19" h (I.D.: 12" w x 12" depth x 12" h)
▪ Lead Shielding: 2" thick (5 cm)
▪ Weight: 500 kg approx.
▪ Custom designs possible

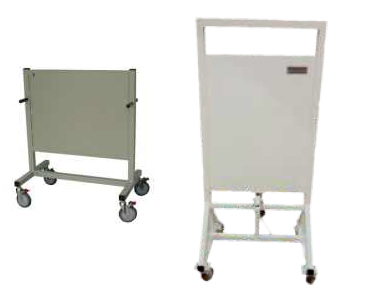

The Adjustable Height Mobile Radiation Shield puts shielding where it is needed. Roll into
place, secure the wheels and adjust to the desired height. Panel can be height adjusted within
a 6" range. Wheel and swivel locks on each caster provide secure placement. Mild
steelConstruction with rich paint surface.
▪ Dimensions: Shield: 36" w x 24" h; 60” from ground;
Height Adjustment: 6"
▪ Lead Shielding: 1" thick (2.5 cm)
▪ Finish: Pint
▪ Weight: 200 kg approx.
▪ Fixed height Lead Barrier with similar dimensions also available
▪ Custom designs possible
Designed to hold unshielded syringes. Constructed of lead shielding, encased in mild steel. Metal
flap to securely hold the syringe.
▪Dimensions: 6.5" height, 1” dia
▪ Lead Shielding: 0.5" thick
▪ Finish: Pint
▪ Weight: 4 Kg approx.
