Radimage


Radimage 0.6cc Farmer Type Ion Chamber
Brachytherapy Well Chamber
RH-FC 0117


Indigenously designed and developed to suit the Radiotherapy dosimetry applications. The measuring volume is vented to ambient and requires, Air density correction for accurate measurements. Wide energy range extending from 200kev to 35Mev. Standard outer
dimensions, compatkible with Farmer Chambers of other manufacturers. Integral 10 metre long triaxial cable, or can be
customised as per the requirements.

Dosimetry Farmer Type Ion Chamber in india 0.6cc Farmer Type Ion Chamber Brachytherapy Well Chamber RH-FC 0117 Electrode Cavity length Outer diameter Build -up Cap Polarizing Voltage

Specifications

Chamber type RH-FC0117
Cavity Volume
Wall Material
0.6cm3 nomin al
PMMA/Graphite*
PMMA/Graphite* 0.4mm
Electrode Aluminium
Cavity length 24mm
Outer diameter 7mm
Build -up Cap Delrin
Polarizing Voltage Maximum 500V
Chamber Leakage ± 2fA
Energy Range 140keV-50MeV
Connector Triaxial TNC or BNC
*Specify the required wall material

Radimage Brachytherapy Well Chamber
RH-WC 12017

Indigenous Well type chamber
provides a very convenient means for the measurement of Reference Air Kerma Rate of Brachytherapy sources
used for cancer treatment. It is High sensitivity chamber as a result of higher absolute efficiency (close to unity) makes it a precise, linear,
stable and reliable equipment. It is very rugged and has a long life. It is
ideal for LDR and HDR.

Specifications
                                          *Can be supplied with ADCL USA calibration (optional) or BARC Calibration, date to be appointed by the user.

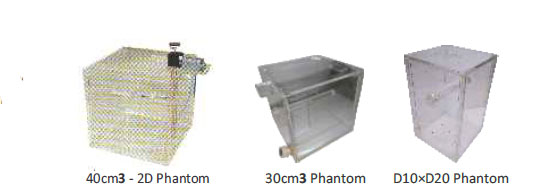

Radimage Water Phantoms
• Available in wide variety and application needs
• Fixed depth chamber holder; 30cm³ or any size
• Variable depth2D; with crank assembly, any size
• D10xD20 water filled phantom
• Dual chamber water phantom
• Motorised 2D phantom and more......

Specifications
