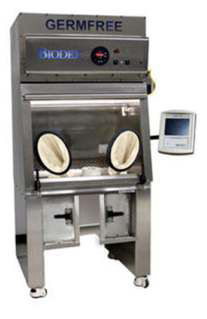

Biodex Portable Shielded Isolator
The Cleanroom Solution
The Biodex Germfree Portable Shielded Isolator provides the ultimate in both
product and operator protection. The shielded isolator functions as a
"glovebox" using negative pressure to meet NIOSH recommendations while
complying with USP<797> regulations for use outside a cleanroom.
HEPA filtered unidirectional (laminar) air bathes the work area to protect the
product from contamination and removes any particulate generated by sample manipulation. The operator is provided a complete shielded barrier
from materials being manipulated in the work area.
The Biodex Germfree
Shielded Isolator meets or exceeds ISO14644‐1, ISO Class 5(Class 100 Air
Quality)
• Small footprint
• Large, full‐view shielded window
• Designed from the ground up for a Radiopharmacy
• Stainless Steel, inside and out
• Motorized height adjustable – 10 inch range
• Work sitting or standing with correct ergonomics

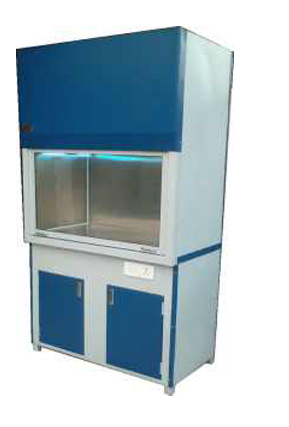

Radimage Fume Hoods
An efficient system for your basic fume hood needs. Sturdy ergonomic design for
uniform flow control to ensure clean and odor free working environment.
• Constructed entirely of mild steel with thick painted surface
• Working chamber constructed of Stainless Steel 304
• All joints covered and no sharp edges
• Height 72” from ground, width 48”, depth 28” and chamber height 30”
• Mounted on four sturdy lockable wheels for ease of movement
• Height adjustable transparent acrylic sach in front
• Heavy duty centrifugal blower for exhaust
• Mirror on front wall of chamber
• A combination of Prefilter, HEPA and Charcoal filter is standard
• Sturdy chamber base to handle ‘L’ Bench and lead bricks
• White fluorescent and UV lights fitted
• Electrical point inside the working chamber
• Available models:
• RHFH3
Lead Shielding 3mm; weight 150 Kg approx.
• RHFH6
Lead Shielding 6mm; weight 200 Kg approx.
• Custom designed sizes available in mild steel and SS 304 models
Radimage Glove Box
Designed for storage and working inside shielded enclosure. Securly shielded
with 12mm lead and equivelent lead glass window. Two side openable and
lockable doors for movement of radioactive substance.
White fluorescent LED light and electrical socket inside the chamber.
• Weight 280 Kg approx.
• Lead shielding 12mm
• Lead glass window 10”x8”; 60mm thickness
